DNN Image Segmentation

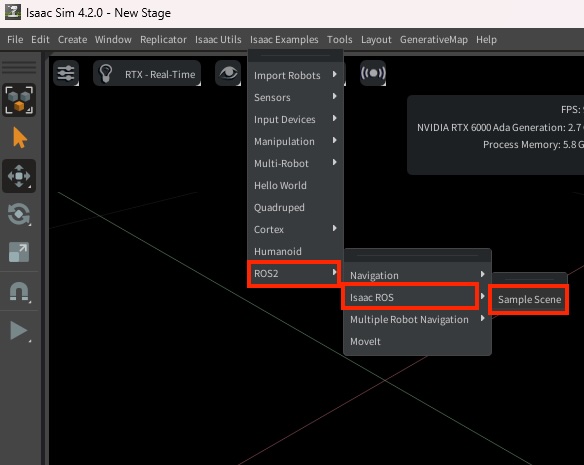

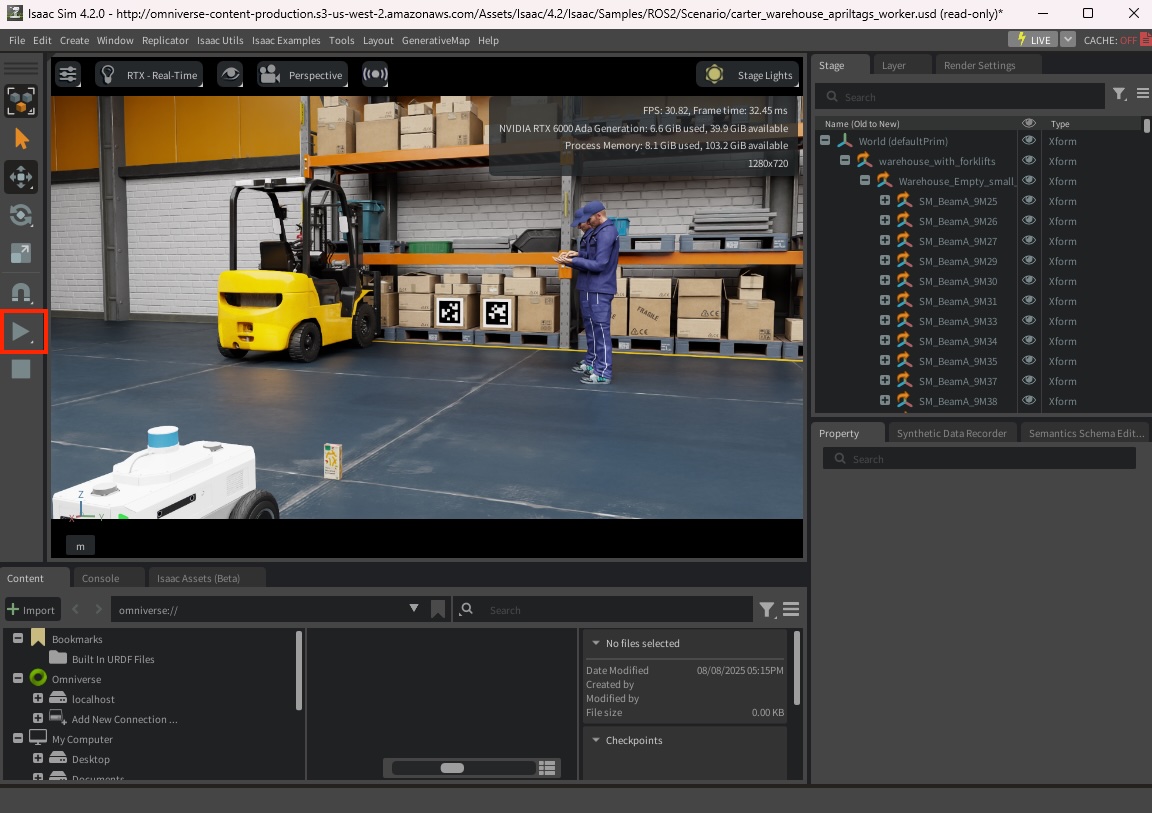

Isaac SIMの起動

1
export ROS_DOMAIN_ID=1

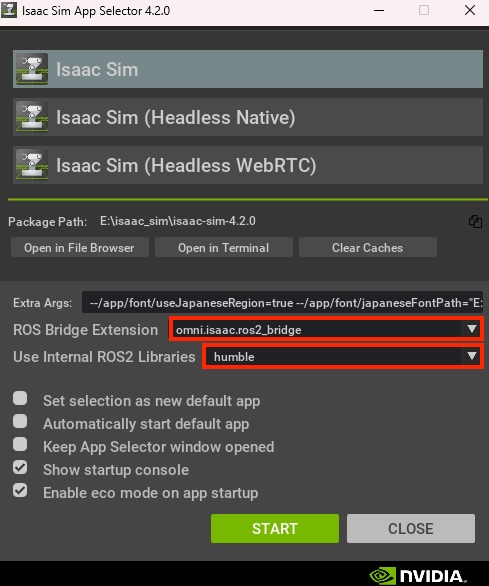

Isaac SIMを起動。起動時にROS Bridgeを設定する。

Jetson側のROSの設定

1
2
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

1
2
3
sudo apt update
sudo apt-get install -y ros-humble-nova-developer-kit-bringup
source /opt/ros/humble/setup.bash

1
2
3
4
sudo apt-get install -y ros-humble-isaac-ros-detectnet \
    ros-humble-isaac-ros-dnn-image-encoder \
    ros-humble-isaac-ros-triton
sudo apt-get install -y ros-humble-isaac-ros-examples ros-humble-isaac-ros-argus-camera

Jetson側のコマンド(Terminal1)

Isaac SIMの起動しているPCのROS_DOMAIN_IDと同じIDを指定します。

1
export ROS_DOMAIN_ID=1

1
2
3
ros2 launch isaac_ros_ess isaac_ros_ess_isaac_sim.launch.py \
   engine_file_path:=${ISAAC_ROS_WS:?}/isaac_ros_assets/models/dnn_stereo_disparity/dnn_stereo_disparity_v4.1.0_onnx/ess.engine \
   threshold:=0.4

Jetson側のコマンド(Terminal2)

Isaac SIMの起動しているPCのROS_DOMAIN_IDと同じIDを指定します。

1
export ROS_DOMAIN_ID=1

1
2
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

1
ros2 run isaac_ros_ess isaac_ros_ess_visualizer.py

ROS topic list

1
ros2 topic list

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/back_stereo_imu/imu
/camera_info
/camera_info/nitros
/chassis/imu
/chassis/odom
/clock
/cmd_vel
/disparity
/disparity/nitros
/front_3d_lidar/lidar_points
/front_stereo_camera/left/camera_info
/front_stereo_camera/left/camera_info/nitros
/front_stereo_camera/left/camera_info_resize
/front_stereo_camera/left/camera_info_resize/nitros
/front_stereo_camera/left/image_rect_color
/front_stereo_camera/left/image_rect_color/nitros
/front_stereo_camera/left/image_resize
/front_stereo_camera/left/image_resize/nitros
/front_stereo_camera/right/camera_info
/front_stereo_camera/right/camera_info/nitros
/front_stereo_camera/right/camera_info_resize
/front_stereo_camera/right/camera_info_resize/nitros
/front_stereo_camera/right/image_rect_color
/front_stereo_camera/right/image_rect_color/nitros
/front_stereo_camera/right/image_resize
/front_stereo_camera/right/image_resize/nitros
/front_stereo_imu/imu
/left_stereo_imu/imu
/parameter_events
/points2
/points2/nitros
/right_stereo_imu/imu
/rosout
/tf

Orin Nova Developer Kitのカメラの場合

1
2
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

1
2
3
sudo apt-get update
sudo apt-get install -y ros-humble-isaac-ros-examples \
    ros-humble-isaac-ros-argus-camera

1
sudo apt-get install -y ros-humble-isaac-ros-examples ros-humble-isaac-ros-argus-camera

1
2
3
4
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py \
    launch_fragments:=argus_stereo,rectify_stereo,ess_disparity \
    engine_file_path:=${ISAAC_ROS_WS}/isaac_ros_assets/models/dnn_stereo_disparity/dnn_stereo_disparity_v4.1.0_onnx/ess.engine \
    threshold:=0.4
